Steel Sheet Double Layer Roll Forming Machine With Water Cooling System

Model Number : double layer

Certification : CE

MOQ : 1 SET

Price : negotiated

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50 SETS PER MONTH

Delivery Time : within30 days after receiving deposit

Packaging Details : 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3.PLC control system and moter pump are packed with water-proof plastic coverage.

roof tile and wall roll forming machine Tile Type : Colored Steel

Dimension(L*W*H) : 6500*1500*1500

Weight: About : 3.5 T

Voltage : 380V.50HZ.3Phase

Roll material : 45# high grade steel

Production Capacity : 8-12M/Min

Control system : totally automatic PLC

Cutting system : automatic hydyaulic cutting

Contact Now

Steel sheet Double Layer Roll Forming Machine With Water Cooling System

Product Description

What is the application of double line roll forming machine?

double line roll forming machine is mainly producing steel roof/ wall sheet .The final products have two types,.As we know, steel roof/ wall sheet iswidely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

About the double line roll forming machine,we have many types:

1. double layer corrugated sheet /corrugated sheet double line roll forming machine

2. double layer trapezoidal sheet /trapezoidal sheet double line roll forming machine

3. double layer glazed tile /trapezoidal sheet double line roll forming machine

4. double layer glazed tile /corrugated sheet double line roll forming machine

What is the advantage of double line roll forming machine?

1. The system is easy to operate and use. PLC: Delta(Can customize as customer require)

2. the surface of the final product is very smooth and beautiful without any scratch on the surface.

3. customized:design the machine according to your specification and profile drawing.(for your reference)

Steel Sheet Double Layer Roll Forming Machine With Water Cooling System

What is the specification of double line roll forming machine?

Item	Specification
Name	double line roll forming machine
material	color steel,GI,PPGI
Processing thickness	0.3-0.8mm
Diameter of shaft	Φ80mm
Electric tension	as the customer's requirements
Roller	45# steel chrome platingchromium
Processing precision	within 1mm
Transmission	by chain link(1inch)
Hydraulic cutting	controlled by PLC
PLC	DELTA(TAIWAN)
Material of blades	Cr12 quenched
Switch	CHNT
Roller station	to the finnal design

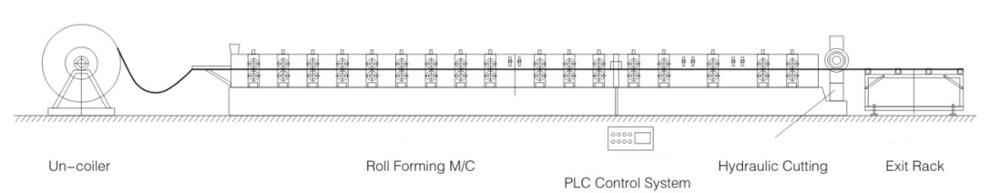

process flow diagramof double line roll forming machine

Steel Sheet Double Layer Roll Forming Machine With Water Cooling System

detailsofdoubledouble line roll forming machine

FAQ:

1. How to get a quotation of roof tile making machine?
Give me the profile drawing and thickness ,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.

2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

3. How long the roof tile making machine could be made?
Normally speaking, roof tile making machine could be made without 45 working days. If you need roof tile making machine in a hurry, we can make it for you less than a month.

4. What is your after-sale service?
roof tile making machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the roof tile making machine.
